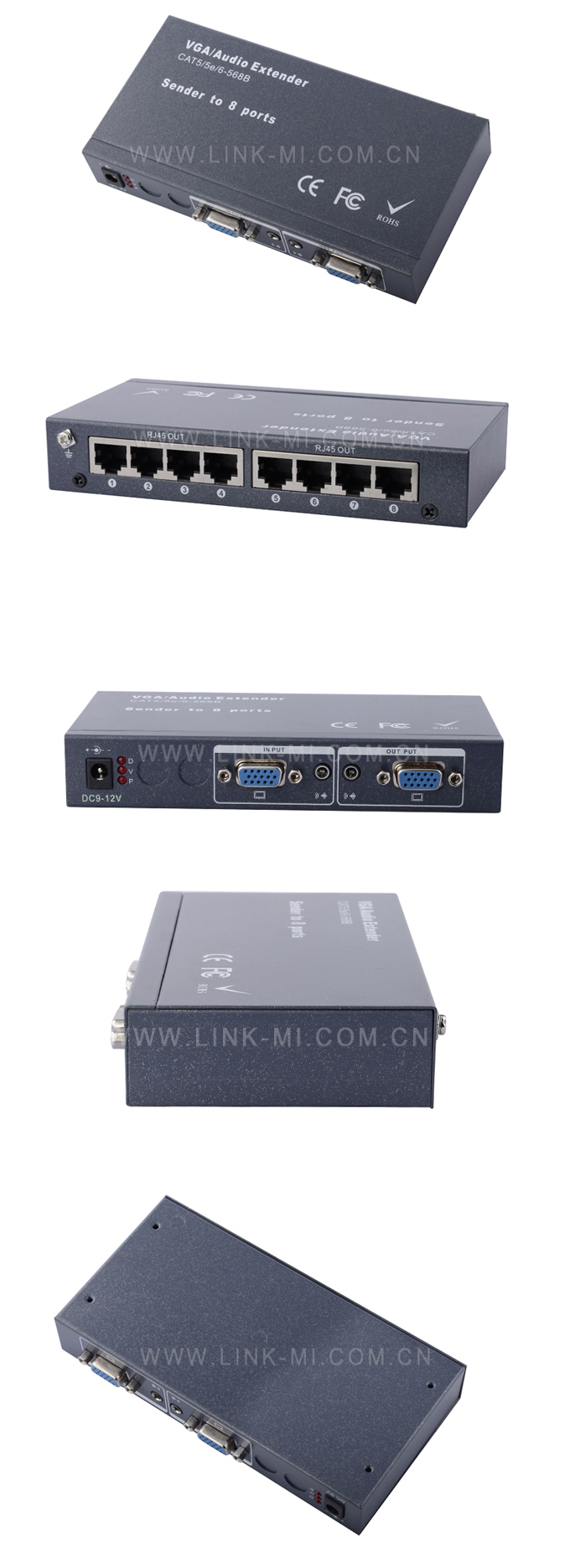

| LINK-MI LM-108T 8 Channel VGA Video and Audio Transmitter |
| |
Introduction:
1. Sharpest and clearest VGA quality over CAT5 of any manufacturer.2. Hi performance Audio quality over CAT5 of any manufacturer3. Supports local and remote VGA monitors and Speaker.4. Real Time Transmission Video & Audio signals by single CAT5 cable5. No TCP/IP protocol and networking setting and maintenance6. No Ant firewall needed, no IP and networking occupation7. Plug and Play, compatible with all format VGA video signals.8. Built-in ESD and surge protection.9. Available with VGA contact and RGB brightness adjustment10. Use in-house CAT5/5e/6 phone wiring to locate a monitor remotely.11. Metal case |
|
|
| |
|
|
|
|
Specification
|
Power properties |
Power Supply |
12V DC(power adaptor) |
|
Power Consumption |
<20w |
|
Power Switch |
Support |
|
Video
properties |
Video Input Connector |
1* blue 15pin HD15 male; Impedance: 75Ω |
|
Local Video Output Connectors |
3* blue 15pin HD15 female; Impedance: 75Ω |
|
UTP Cable Connectors |
8* RJ-45; Impedance: 50Ω |
|
Signal Transmission Band |
>350MHz(-3db) |
|
Linear Distortion |
<3% |
|
R,G,B Signal Distortion |
<2ns |
|
Common-mode Interference Rejection |
65db(typical) |
|
Synchronous signal |
0-5V,TTL PWL |
|
Synchronous signal band |
1K-200KHz |
|
Synchronous Signal Delay |
<15ns |
|
DDC2 |
Virtual DDC |
|
Audio properties |
Audio Connectors |
2* 3.5mm Audio Jack |
|
Input Impedance |
10kΩ |
|
Output Impedance |
600Ω |
|
Transmission Band |
10-20KHz |
|
Protections |
Lightning Protection |
1000V, 10/700us
IEC61000-4-5 |
|
ESD |
Contact Discharge:2000V
Air Discharge:4000V
IEC61000-4-2 |
|
Physical
Properties |
Dimensions (LWH) |
575*275*90mm |
|
Housing Material |
Metal |
|
Color |
Blue |
|
N.W. |
0.6 kg |
|
Environmental |
Operating Temperature |
0°C ~55°C |
|
Relative Humidity(non-condensing) |
0-, 95% |
|
Storage Temperature |
-20°C ~80°C |
|
Accessories |
VGA Cable(F-M) |
Length:1.2m |
|
Audio Cable(M-M) |
Length:1.5m |
|
Standard Power Cable |
Length:1.2m |
|
Casing |
Gross Weight |
2.57kg |
|
Casing Volume(L*W*H) |
575*275*90mm |
Packing Contents
1. Main Unit. 1pcs VGA Video and Audio Transmitter
2. 1pcs Power Adapter
3. 1pcs User Manual
|
 |
|
|
|
|
